Turnkey Beverage Production Line Solutions
Complete filling lines engineered around the product you make — bottled water, carbonated drinks, beer and spirits, juice and tea, and edible oil. Every solution shows the process flow and the equipment list.
Production lines
5 applications
water · soda · beer · juice · oil
Containers
PET · glass · can
and 5-gallon barrels
Line scope
Water to pallet
treatment to palletizing
Every project
Free layout
test run and training
Which Drink Will You Produce?
Each drink is filled on a different principle, so each line is engineered differently. Pick yours to see its process flow, equipment list and selection guide.
Bottled Water Production Lines
Purified, natural and mineral water — and other still drinks — in PET bottles, glass bottles, cans and 5-gallon barrels.

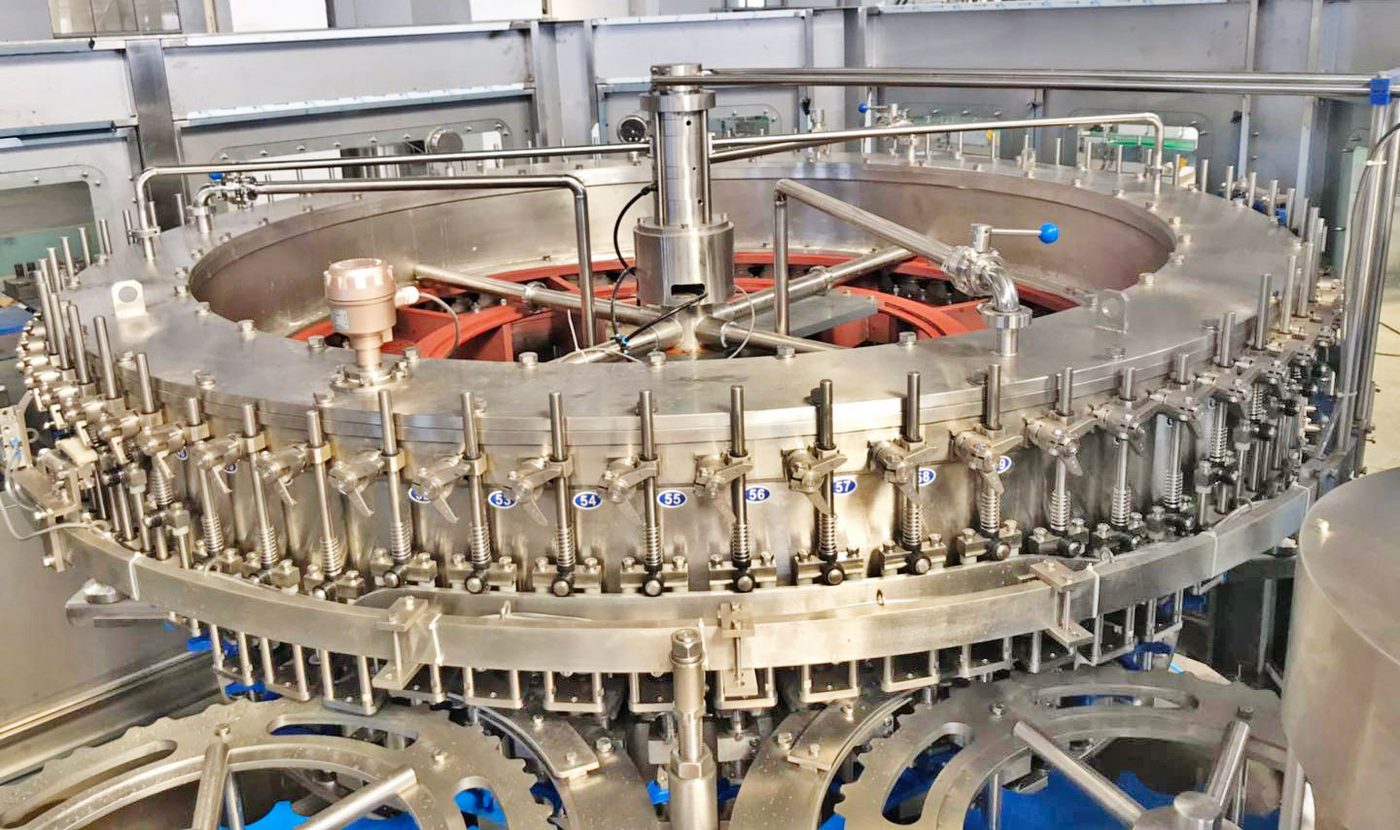

Carbonated Beverage Production Lines
Cola, flavored soda, energy and sports drinks and tonic water — counter-pressure filled into PET, glass or cans.

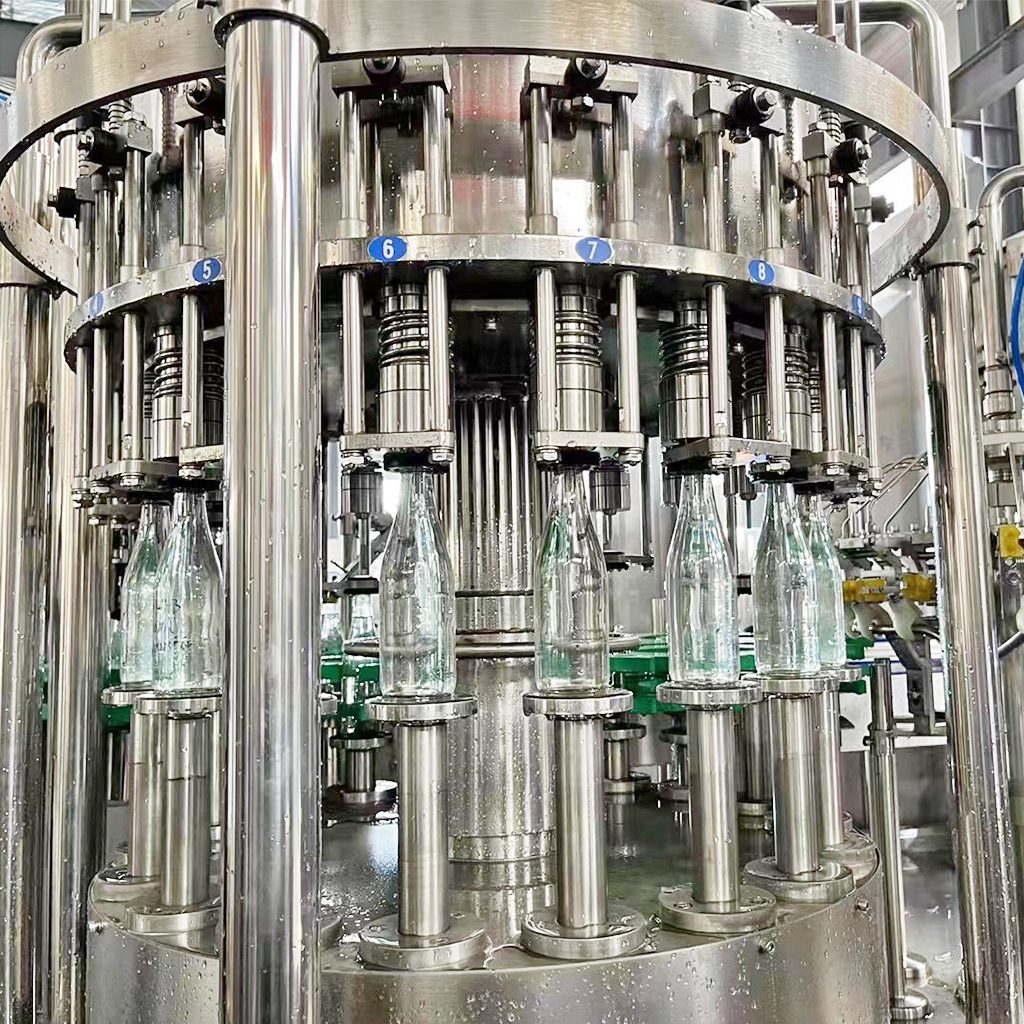

Beer & Alcohol Bottling Lines
Beer in cans and bottles, and vodka, whisky and other still spirits in glass — with the right filling principle for each.

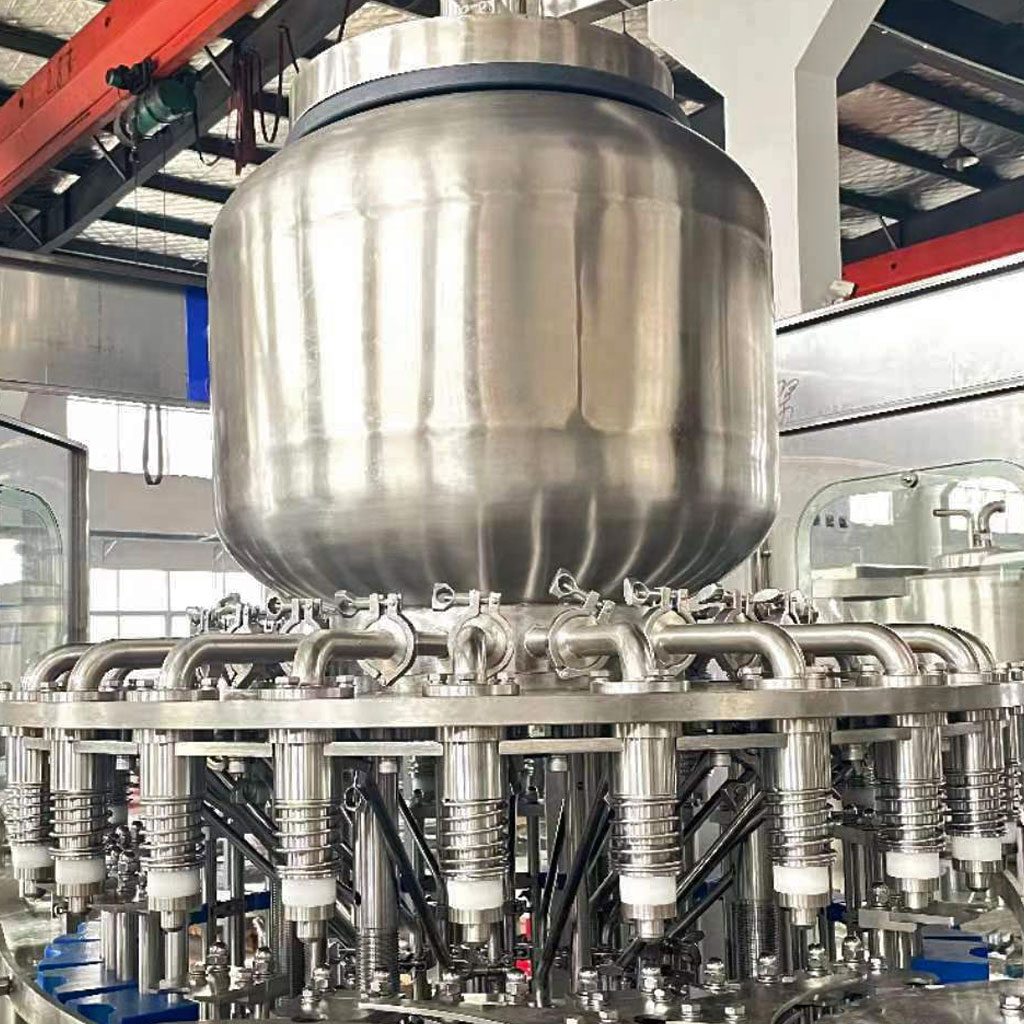

Juice & Tea Production Lines
Fruit juice, tea, ready-to-drink coffee and functional drinks — hot-filled or aseptic cold-filled into PET, glass or cans.

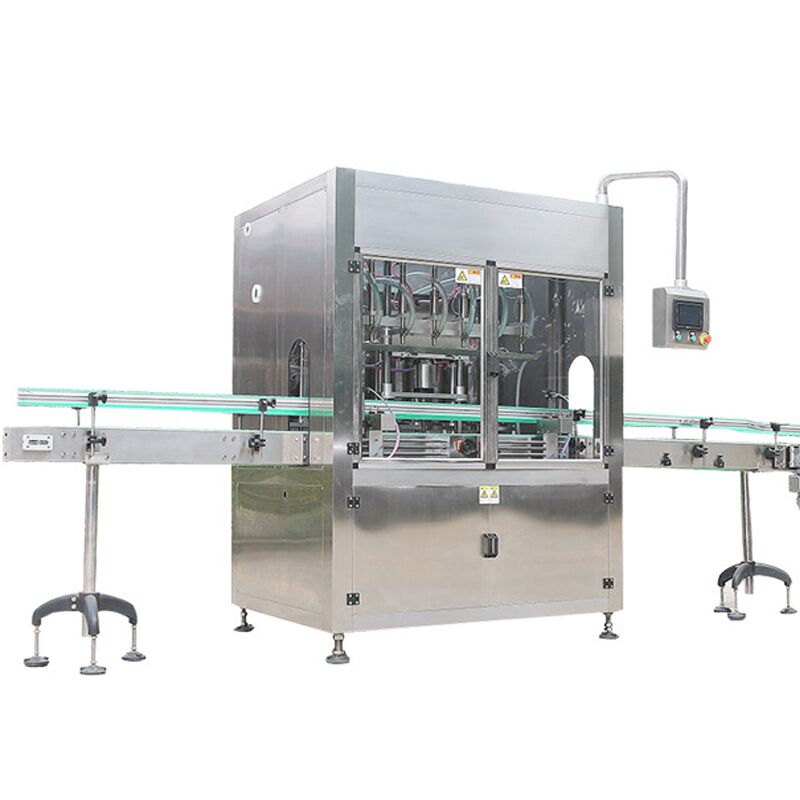

Edible Oil Filling Lines
Edible oil and other viscous liquids such as sauces and dressings, piston-filled into plastic bottles, glass bottles and jars.
Which Filling Principle Fits Your Drink?
A filling machine only works for the drinks it was designed for — a water filler cannot fill soda, and a vacuum filler cannot fill carbonated drinks.
| What you fill | Filling principle | Typical containers | Our solution |
|---|---|---|---|
| Still, mineral or sparkling water | Filling principleAtmospheric / gravity | Typical containersPET · glass · cans · 5-gallon | Our solutionBottled Water Lines → |
| Juice, tea, RTD coffee, functional drinks | Filling principleNegative pressure (vacuum); hot fill or aseptic cold fill | Typical containersPET · glass · cans | Our solutionJuice & Tea Lines → |
| Cola, soda, energy and tonic drinks | Filling principleCounter-pressure (isobaric) | Typical containersPET · glass · cans | Our solutionCarbonated Beverage Lines → |
| Beer | Filling principleCounter-pressure | Typical containersGlass bottles · cans | Our solutionBeer & Alcohol Lines → |
| Vodka, whisky and other still spirits | Filling principleMicro negative pressure | Typical containersGlass bottles · cans | Our solutionBeer & Alcohol Lines → |
| Edible oil, sauces and other viscous liquids | Filling principlePiston filling | Typical containersPlastic · glass · jars | Our solutionEdible Oil Lines → |
From Raw Material to Palletized Cases
Every turnkey line follows the same backbone. The machines along it change with your drink.
Every Linho line includes
Engineering consultation
The right configuration for your product, container and output — confirmed before you pay.
Free factory layout
Once the equipment is confirmed, we draw your plant layout at no charge.
Workshop test run
Every machine is run in our workshop (2–3 days) before it ships.
Installation & training
Our technicians install, commission and train your operators on site.
The Machine Series Behind These Lines
Water, can and 5-gallon lines have their own series pages with model comparisons. Bottle lines for juice, soda and spirits are configured to your project.
Water Filling Line Series
Purified, natural and mineral water and other non-carbonated drinks in PET and glass bottles.
Output range
2,000–36,000 Bottles/Hour (250ml–2L)
View series →
Can Filling Line Series
Counter-pressure filling and seaming for beer, carbonated soft drinks, energy drinks and juice in aluminum cans.
Output range
2,000–20,000 Cans/Hour
View series →
5-Gallon Filling Line Series
Automatic washing, filling and capping lines for 3-gallon and 5-gallon returnable water containers.
Output range
100–3,000 BPH (15–21L)
View series →Tell Us What You Want to Produce
Send your drink, container and target output. Our engineers reply within 1 working day with a preliminary line proposal.
What to send us
Your product
Beverage type and recipe. For water lines, your raw water source too.
Target output
Bottles or cans per hour, and how many shifts you plan to run.
Container samples
At least one bottle, cap and label (or can and lid). We build the machine to the samples.
Workshop & utilities
Workshop size, plus your voltage, frequency and number of phases, water and compressed air.
