Home / Machines / Water Filling Line Series

Turnkey Production Series · Model LHW-Series

Complete Water Bottling Production Line Series

Custom-engineered bottling lines ranging from 2,000 to 36,000 bottles per hour.
Seamlessly integrates raw water purification, PET bottle stretch blow molding,
3-in-1 rotary monoblock filling, precision labeling,
and automated secondary shrink packing.

Output Range

2,000–36,000

Bottles/Hour (250ml–2L)

Filling Accuracy

≤ ±0.5%

Constant Liquid Level

Filling Method

Gravity / Vacuum

Sanitary Standard

SUS304 / SUS316

Get Line Quotation View Technical Specs

✓ Siemens S7-1200 / 1500 PLC ✓ Schneider Electronics ✓ Airtac Pneumatics

Adaptive Line Engineering

Synchronized Production Stations

Every mechanical station is synchronized via centralized PLC bus.
Flexible modular architecture scales from 3-unit compact setups to 7+ station industrial plants.

1 Water Treatment

2 Blow Molding

3 3-in-1 Monoblock

4 OPP Labeling

5 Shrink Bundling

Station 01

Pre-Treatment

RO Water Purification

Quartz sand, active carbon, RO membrane & UV/Ozone sterilization.

1,000–50k L/h Output ≥98.5% Desalination

Station 02

Bottle Formation

PET Blow Molding

Infrared preform heating & 35-bar pneumatic high-pressure stretch blowing.

250ml – 2.0L Sizes 2 to 10 Cavities

Core Station 03

Filling Heart

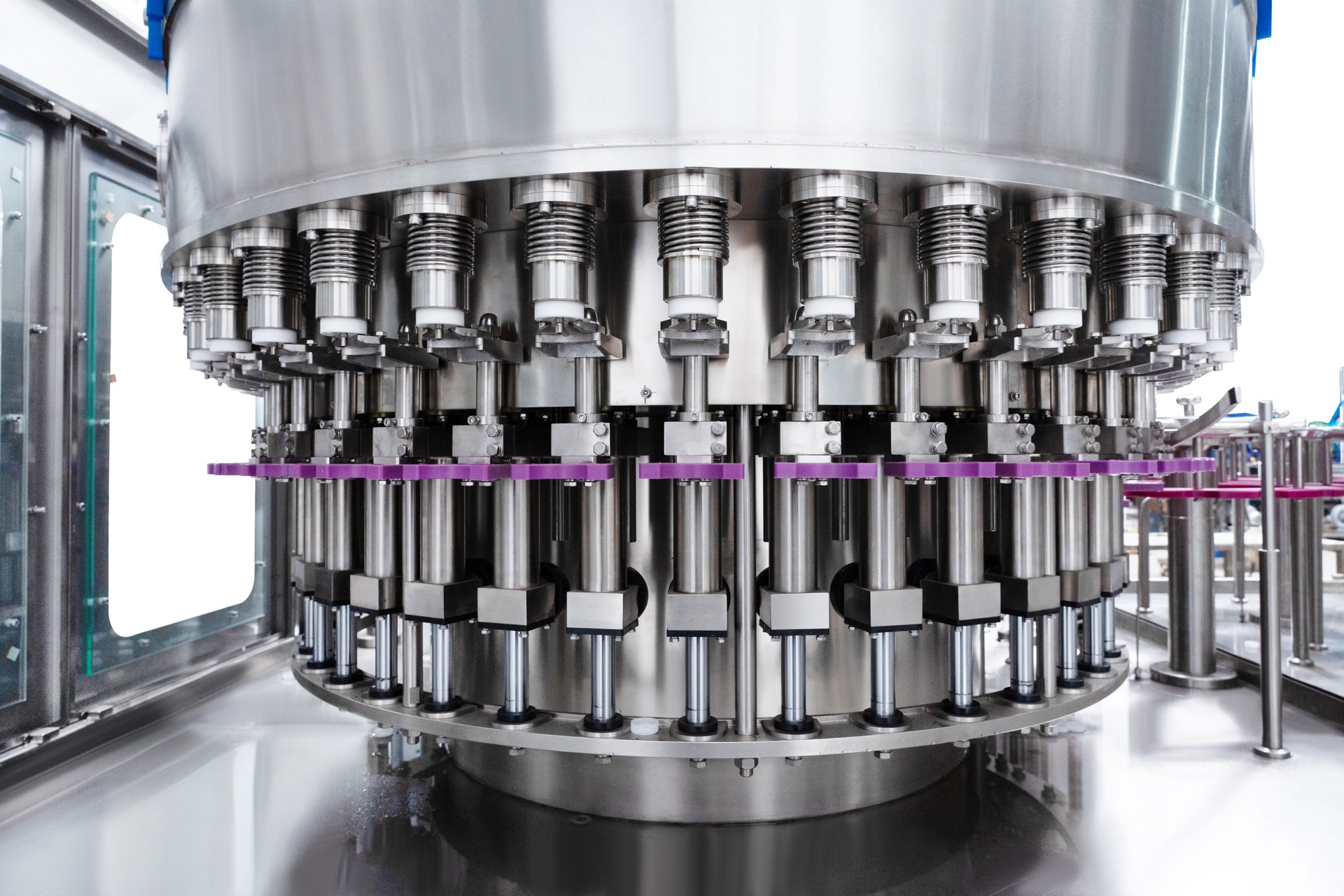

3-in-1 Rotary Monoblock

Synchronized neck-hanging rotary rinsing, gravity filling & magnetic capping.

≤ ±0.5% Accuracy 16-16-5 to 60-60-15

Station 04

Finishing

OPP Labeling & Coding

Roll-fed hot-melt glue or PVC shrink sleeve with automatic laser batch coder.

±1.0 mm Accuracy Fiber Laser Dating

Station 05

Secondary Pack

PE Film Shrink Bundler

Automatic bottle grouping into 2x3, 3x4 or 4x6 packs with thermal shrink wrap.

15 – 35 Packs/min Tear-Free Packaging

Engineering Specifications

Water Filling Line Model Comparison & Capacity Matrix

Select standard line models categorized by bottle output capacity.
Custom configurations with non-standard bottle shapes are available upon request.

Model Code	Rinse / Fill / Cap Heads	Rated Output (500ml)	Bottle Volume Range	Total Power	Air Pressure	Inquiry
LHW-16-16-5	16 - 16 - 5	3,000 – 5,000 BPH	250ml – 1,500ml	3.5 kW	0.4 – 0.6 MPa	Request Specs →
LHW-24-24-8 Hot Sale 🔥	24 - 24 - 8	8,000 – 12,000 BPH	250ml – 2,000ml	5.5 kW	0.6 – 0.8 MPa	Request Specs →
LHW-32-32-10	32 - 32 - 10	12,000 – 18,000 BPH	250ml – 2,000ml	7.5 kW	0.6 – 0.8 MPa	Request Specs →
LHW-40-40-12	40 - 40 - 12	18,000 – 24,000 BPH	250ml – 1,500ml	9.2 kW	0.6 – 0.8 MPa	Request Specs →
LHW-60-60-15	60 - 60 - 15	28,000 – 36,000 BPH	250ml – 1,000ml	15.0 kW	0.7 – 0.9 MPa	Request Specs →

📹 Water Filling Line in Operation — Workshop Footage

72-Hour Continuous FAT

Tested to Full Capacity in Our Workshop Before Ocean Shipment

We never ship an untested machine.
Prior to wooden crating and container loading, every Linho water filling line runs for 72 continuous hours in our workshop
with real bottles and liquid to calibrate valve timings, torque tolerances, and PLC sensors.

On-Site Dispatch

Linho mechanical & electrical engineers travel to your plant for commissioning.

Lifetime Spares

Standardized wear parts in stock with international DHL air dispatch within 48h.

Direct Factory Engineering

Get a Customized Water Bottling Line Proposal

Provide your target output and container specs.
Our engineers provide a full equipment bill of materials, AutoCAD workshop layout, and transparent quotation within 24 hours.
